Hot Sell 7R Beam Moving Head Light

FOB Reference Price:Get Latest Price
  • 1 - 19 Pieces
    $309.00
  • >=20 Pieces
    $295.00
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
AC100-240v/50-60Hz
Lamp Power(W):
300
Lamp Luminous Flux(lm):
52000lm(15m)
CRI (Ra>):
85
Working Temperature(℃):
-10 - 40
Working Lifetime(Hour):
20000
IP Rating:
IP20
Place of Origin:
Guangdong, China
Brand Name:
Huayanlight
Model Number:
HY-1003C
Beam angle:
0-3.8 Degree
Prism:
Rotating 8-facet Prism
Color:
14 Color + Blank Color Wheel
Gobo:
17 gobos
DMX Channels:
16CH
Effect Wheel:
Rotation eight prism, effect move , frost
Operate Mode:
DMX,auto run,master slave,sound control
Product Size:
523*337*511mm
Net weight:
19kg
Warranty:
1 year
Type:
Moving Head Lights
Color Temperature(CCT):
COOL WHITE
Light Source:
HID
Emitting Color:
Cold White
Certification:

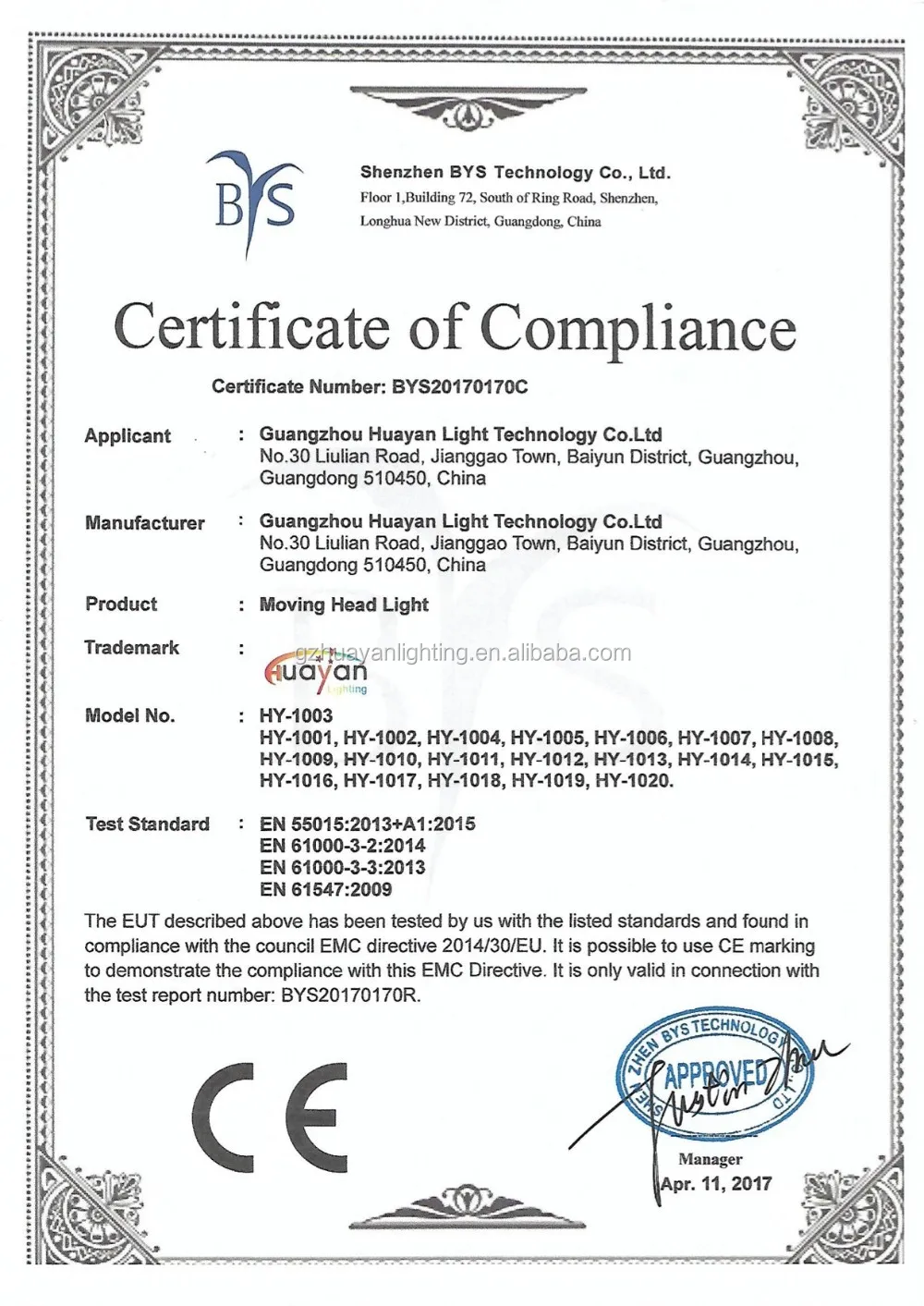

CCC, ce, EMC, FCC, LVD, RoHS
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton:47*40*57cm/pcs..G.W:20kg Flight case size:70*49*72cm(2pcs) G.W:62kg
Port
Huangpu
Lead Time :
It depends on order quantity,usually 3-15 days
Specification
Setting Information
Input Voltage
AC90-240V  50-60Hz
Lamp
MSD Platinum 5R or 7R Lamp(8000K)
Pan Scan
540°(16bit) Electric correction
Tilt Scan
270°(16bit) Electric correction
Color wheel
one color wheel, 14 kinds of color chips in one color wheel
Gobo
17gobos
Effect Wheel
Rotation eight prism, effect move , frost
Power
350W
Product Description

Product Details

0-100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available.
Lens optical system chanical fouce .

Beam angle: 0-4°

Over heat protection
Magnetic ballast and AC/Dc power supply

Product Size:523×337×511mm
Net weight:19.5KG

Product Details

Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24AWG,low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and3.

Product Details

ADDRESS:Set light DMX address.
WORKMOD:Set light work mode, master or slave mode when in auto run mode.
!DISPLAY: Set display parameter, eg. select language.

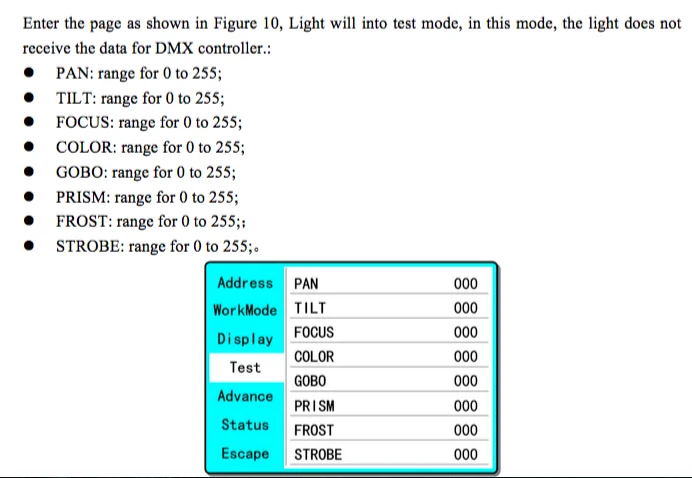

TEST:Used for test light, modify DMX channel data to test function the corresponding
function of reference channel function table.
ADVANCE:Set light running parameter.
STATUS:view light current status.

Product Details

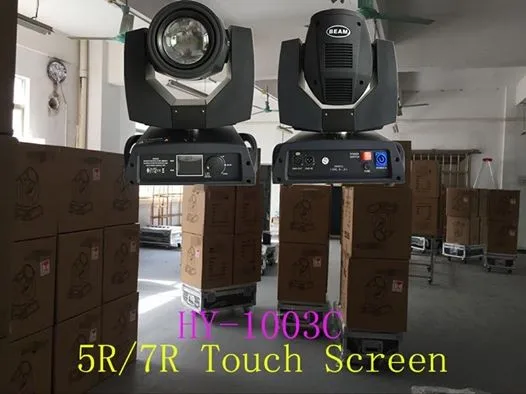

The light panel diagram show as Figure 3, Left area is TFT Displayer, support touch, and right area is encoder button, both of touch and coder button can operate light and setting.
Display & operation just like ‘Android operation system’, touch the item will set or modify setting.
Note: Prevent damage the touch or TFT displayer, Can not use sharp objects chick displayer.

Model
HY-1003C
Lamp Light Source
MSD Platinum 5R or 7R Lamp(8000K)
Color wheel
one color wheel, 14 kinds of color chips in one color wheel
Effect Wheel
Rotation eight prism, effect move , frost

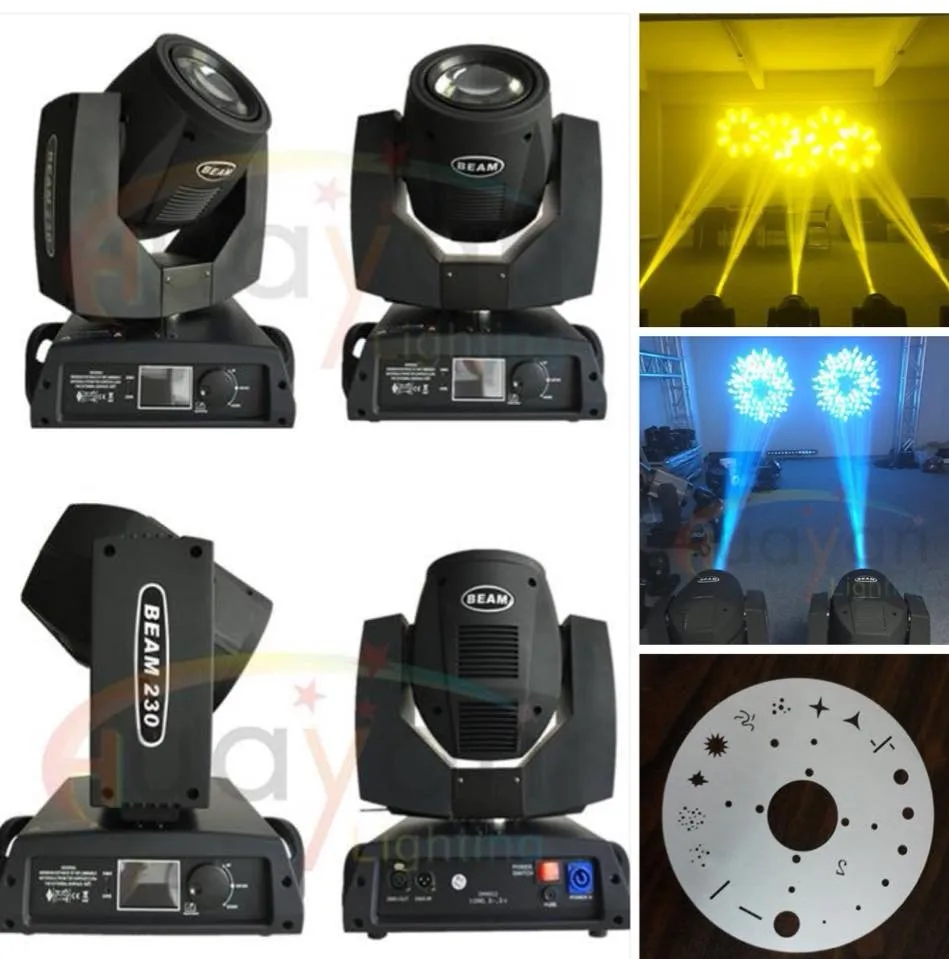

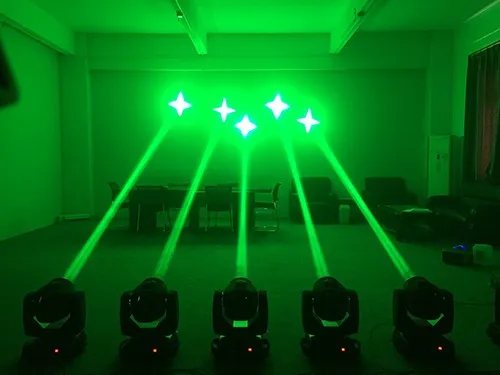

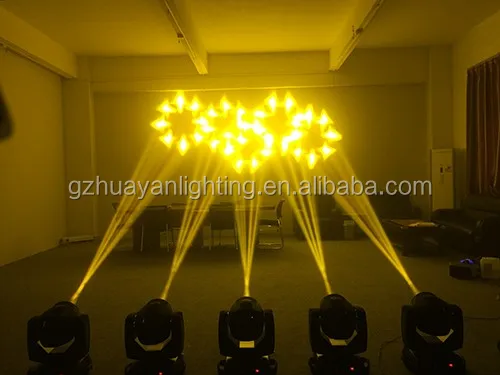

Product Details Pic

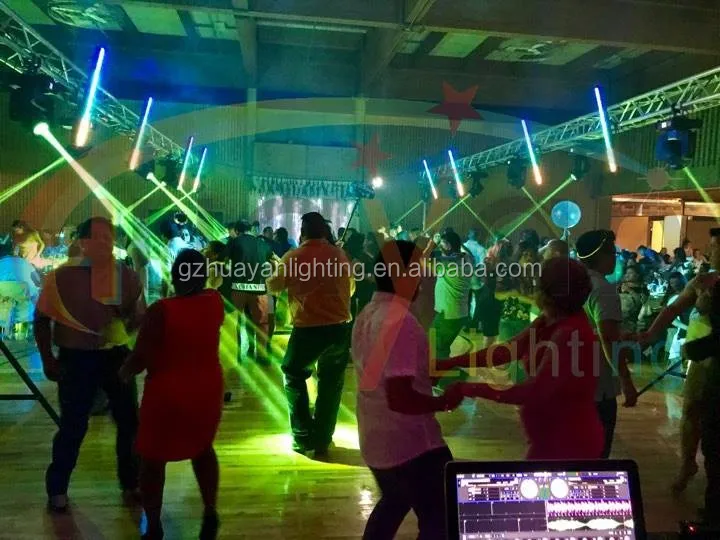

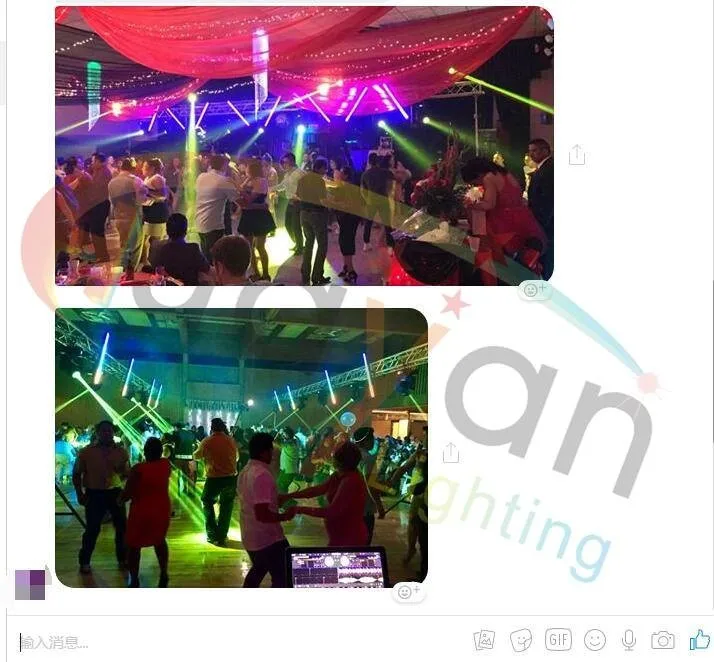

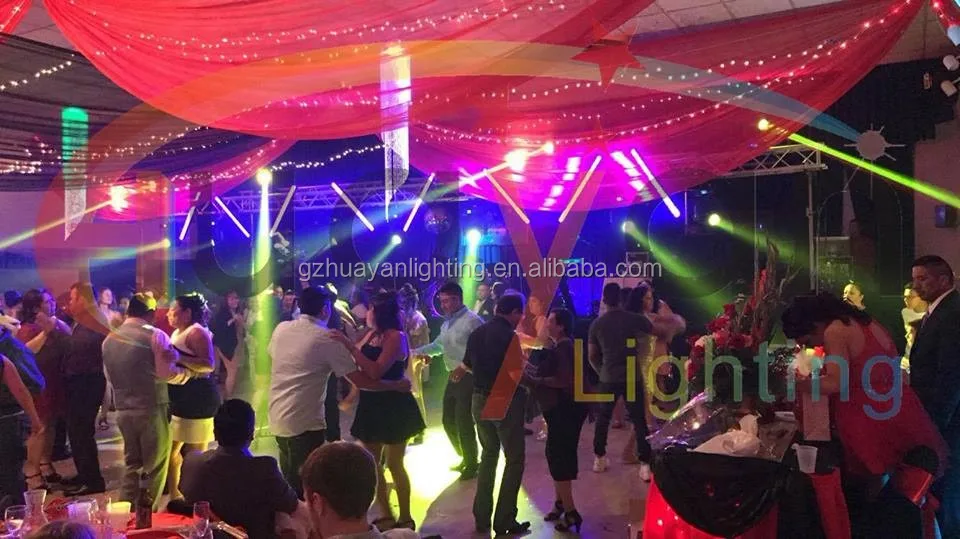

Applications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-4 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send the replace parts with free cost.
